Версия для печатиIP-камера купольная панорамная Dahua, 4 Мп, FishEye

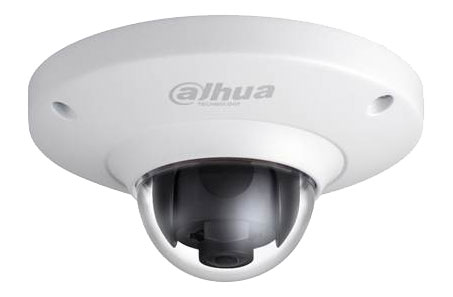

IP-камера купольная панорамная Dahua, 4 Мп, FishEye

Артикул: DH-IPC-EB5400P

1/3”4Megapixel progressive scan CMOS, 1.18mm fixed lens. Max 15fps@4M(2592×1520), 25/30fps@1080P

Статус: Под заказ

Опт1 0.00 a i Для частных лиц при разовом заказе на сумму более 50 000 рублей. Для юридических лиц и индивидуальных предпринимателей при разовом заказе на сумму до 300 000 руб.

Опт2 0.00 a i При разовом заказе на сумму более 300 000 руб.

Особенности:

1/3”4Megapixel progressive scan CMOS
H.264 & MJPEG dual-stream encoding
Max 15fps@4M(2592×1520), 25/30fps@1080P
Day/Night(Electronic), 3DNR, AWB,AGC,BLC
Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
1.18mm fixed lens
Micro SD memory, IK10, PoE

Технические характеристики:

Model     DH-IPC-EB5400
Camera
Image Sensor     1/3” 4Megapixel progressive scan CMOS
Effective Pixels     2592(H)x1520(V)
Scanning System     Progressive
Electronic Shutter Speed     Auto/Manual 1/3(4)~1/10000
Min. Illumination     0.01lux/F2.0(color) ,0.001Lux@F2.0(B/W)
S/N Ratio     More than 50dB
Video Output     N/A

Camera Features
Max. IR LEDs Length     N/A
Day/Night     Auto(Electronic)/Color/B/W
Backlight Compensation     BLC/HLC/DWDR
White Balance     Auto/Manual
Gain Control     Auto/Manual
Noise Reduction     3D
Privacy Masking     Up to 4 areas

Lens
Focal Length     1.18mm
Max Aperture     F2.0
Focus Control     Manual
Angle of View     H:180°
Lens Type     Fixed lens
Mount Type     Board-in Type

Video
Compression     H.264/ MJPEG
Resolution     4M(2592×1520)/3M(2048×1520)/UXGA(1600×1200)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240)
Frame Rate     Main Stream     4M(1~15fps)/ 3M (1 ~ 25/30fps)
Sub Stream     D1/CIF(1 ~ 25/30fps)
Bit Rate     H.264: 20K ~ 8192Kbps

Audio
Compression     G.711a/G.711u/PCM
Interface     1/1 channel In/Out(Built in Mic)
Network
Ethernet     RJ-45 (10/100Base-T)
Wi-Fi     N/A
Protocol     IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility     ONVIF,PSIA,CGI
Max. User Access     20 users
Smart Phone     iPhone, iPad, Android, Windows Phone

Auxiliary Interface
Memory Slot     Micro SD, Max 64GB
RS485     N/A
Alarm     1/1 channel In/Out
PIR Sensor Range     N/A

General
Power Supply     DC12V,PoE
Power Consumption     Max 6W
Working Environment     -30°C~+60°C, Less than 95% RH
Ingress Protection     N/A
Vandal Resistance     IK10
Dimensions     Φ110mm×54mm
Weight     0.25kg
